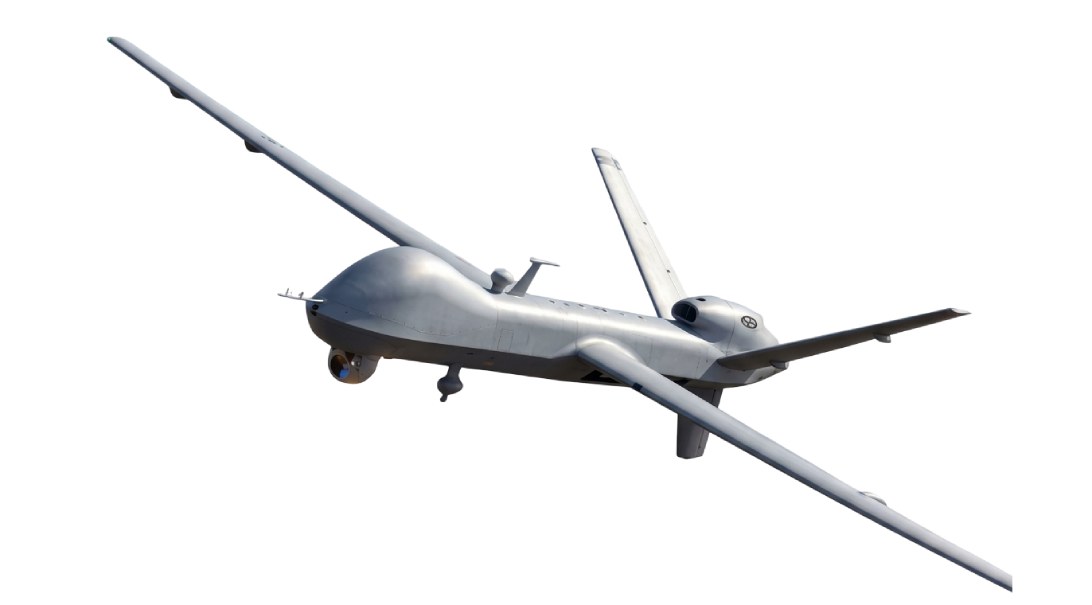

Y500 – High Endurance Fixed Wing Drone
Y500 is a high-performance fixed wing UAV with a maximum payload capacity of 500 kilograms. Its maximum endurance time is 35hours(120kg), maximum range is 500 kilometers, and takeoff / landing distance is 300 meters. The Y500 has all-round autonomous flight, all-weather operaticn, short takeoff and landing(STOL), and rapid assembly/disassembly capabilities. Multiple payload installation points beneaththe fuselage and wings, allowing for simultaneous transportation of different types of payloads. High perfomiance, maximum load capacity of 500kg, with advantages such as all-weather autonomous flight, short takeoff and landing, and rapid assembly/disassembly. Multiple mounting points under the fuselage and wings, capable of meeting various mounting requirements.
Detailed Hardware Specifications:
Maximum Load capacity: 500kg
Maximum takeoff weight : 1200kg
Load endurance : 5h@500kg/35h@120kg
Cruising speed : 220km/h
Maximum range: 5000km
Flight altitude : 9000m
Overall dimensions : 8000*17000*2500mm
Takeoff distance: 300m
Maximum takeoff/landlng altitude : 2000m
